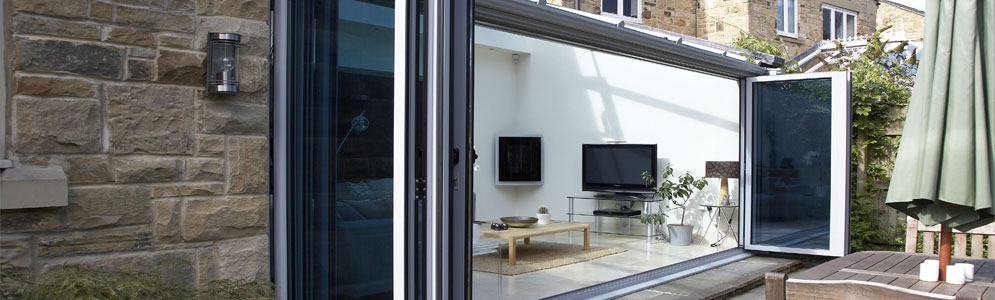

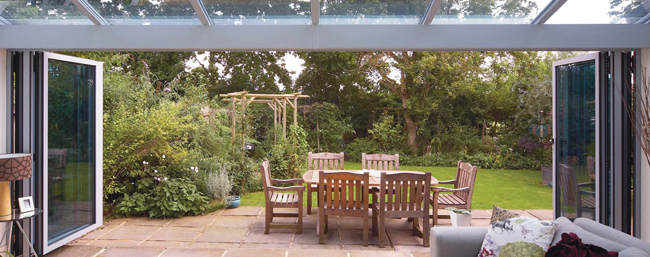

Visofold 1000 Aluminium Bi-folding Doors

The choice for bi-folds



Exceptional care has been taken in designing our Bi-folding and Sliding door systems, for durability
and long term performance. Our doors are manufactured in Great Britain by skilled craftsmen with ultra-high quality components specifically designed for your requirements.



• Attractive, slim-line profiles offer reduced sightlines. Typical sight line 133mm

• Profiles available in either square or rounded (std) edge options

• Fabricated using mitred corners

• Only use Smart specified hardware
• Lock mechanism available with domestic style lift-up handle and an adjustable, one-piece keep
• Low threshold option
• Fully weather sealed
• Thermal Performance 1.8 W/m2K, meets all Part L requirements
• Up to 2500mm Height / Up to1000mm width (per sash)
• Available in any RAL colour
• Smarts Visoglide Aluminium Sliding Doors
• Versatile thermal insulated aluminium horizontal sliding system with internal beads. Suitable for domestic and light / medium /
  heavy duty commercial applications.
• Extruded out of aluminium-alloy AlMgSi 0,5 F22 according to DIN 1725.
• Tolerance according to DIN17618. Finishing:
• Electrostatic powder coating: according to the guidelines of APA-Qualicoat in most of the current RAL-colours.
• Possible to colour in wood structure to imitate different woods (Powder coated according to Qualicoat). All coatings will be delivered
   with a certificate of guarantee for 15 years.
• Anodisation: in satin or bronze colours with E.E.W.A./EURAS-Qualanod quality label.



Thermal break:

The profiles consist of 2 aluminium extrusions which are separated from one another by polyamide strips PA 6.6.25 reinforced with glass fibre. A gluing thread, rolled and pushed in together with the thermal break profile, ensures a strong adhesion after melting and flowing, when the profiles are heated in the hardening furnace.
